  • single output exportation model power supply
  • single output exportation model power supply
Enlarge single output exportation model power supply

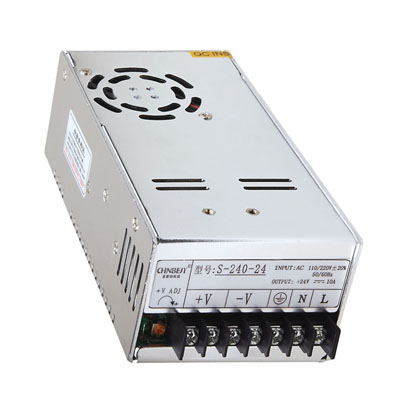

single output exportation model power supply

Place of Origin: Zhejiang, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail


Single output: 240W
Input Voltage range: 110/220VAC20% selectable by switch
190x93x65mm.

Description
Single output: 240W
 Input Voltage range: 110/220VAC20% selectable by switch

General Specitication
Specification\ Model
S-240-5
S-240-12
S-240-24
S-240-48
DC output voltage
5V 40A
12V 18A
24V 10A
48V 5A
Wave and noise
100mVp-p
75mVp-p
75mVp-p
75mVp-p
Inlet stability
±2%
±1%
±1%
±1%
Load stability
±2%
±1%
±1%
±1%
Efficiency
78%
82%
84%
87%
Adjustable range for DC voltage
±10%
±10%
±10%
±10%
AC input voltage range
85 132VAC/170~264VAC  Selected by switch 4763Hz, 240370VDC
AC Inrush current
Cold-start current 18A/230V     36A/230V
Overload proctection
105%135% hiccup mode, auto-recovery
Over-voltage protection
115%150% rated output voltage
Setup rise hold up time
100ms, 20ms, 20ms/230VAC
Withstand voltage
I/P-O/P:3KvAC,     I/P-FG:1.5KvAC,     O/P-FG:0.5Kv     1 minute
Isolation resistance
I/P-O/P,     I/P-FG ,     O/P-FG:500VDC/100M?
Working temperature
-10+50
Safety standards
Design refer to GB4943, UL60950, EN60950
EMC standards
Design refer to GB9254, EN55022 classB
Weight
1.2kg


Overall Dimension(mm):
