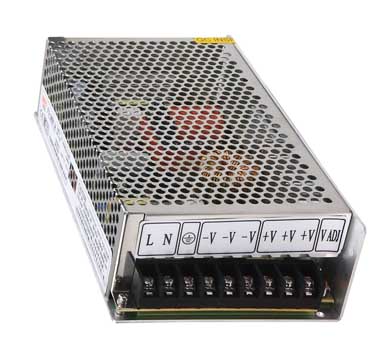

single output mini size switching power from China manufacturer

Payment Terms:	L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: By Sea/Ocean or By Air

Packing: Standard Export Carton

Production Capacity: 100,000,00

Delivery Date: Within 15-20 Days after rec...

Single output: 200W
Input Voltage range: 110/220VAC20% selectable by switch
199x110x50mm.

Single output: 200W
Input Voltage range: 110/220VAC20% selectable by switch
199x110x50mm

General Specification:

Model Specification
B S-200-5
B S-200-12
B S-200-24

B S-200-48
DC output
5V 40A
12V 16.5A
24V 8.3A

48V 4.2A
Wave and noise
100mVp-p
75mVp-p
75mVp-p

75mVp-p
Inlet stability
±0.5%
±0.5%
±0.5%

±0.5%
Load stability
±1%
±0.5%
±0.5%

±0.5%
Efficiency
79%
82%
83%

86%
Adjustable range for DC voltage
±10%
±10%
±10%

±10%
AC input voltage range
85 132VAC/170~264VAC Selected by switch 47 63Hz, 240 370VDC

AC Inrush current
Cold-start current 15A/115V 30A/230V

OverLoad protection
105% 201% hiccup mode, auto-recovery

Over-voltage protection

Setup, rise, hold up time
200ms, 50ms, 20ms

Withstand voltage
I/P-O/P:1.5KvAC, I/P-FG:1.5KvAC, O/P-FG:0.5KvAC 1 minute

Isolation resistance
I/P-O/P, I/P-FG, O/P-FG:500VDC/100MΩ

Working temperature
-10 +50

Safety standards
Design refer to GB4943, UL60950, EN60950

EMC standards
Design refer to GB9254, EN55022 classB

Weight
0.9kg

Overall Dimension(mm):
